Full 2018 KTM motocross line up unveiled

A few weeks ago KTM revealed a few photos of some of their 2018 motocross bikes. Now here are the pics and full details of every model.

 2018 KTM 450 SX-F

If gold is what you’re after, a 450 SX-F is what you race. Thanks to its compact engine delivering explosive but controllable power, it’s the weapon of choice for the Red Bull KTM Factory Team and 4-time AMA Supercross Champion, Ryan Dungey. Precise handling from a lightweight and agile chassis matched the arm-stretching grunt of the to a compact SOHC engine make for an unrivaled 450-class weapon. For 2018, updated suspension damping settings improve the SX-F’s handling while revised clutch plates, lithium-ion battery, and transmission improve reliability. Winner – line up right here.

2018 450 SX-F Highlights

UPDATED WP AER 48 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level. A new setting improves damping.
UPDATED rear suspension damping settings are perfectly matched to the WP AER 48 front fork.
NEW radiator guards provide better airflow in muddy conditions.
NEW C4 bearing fitted to the transmission shaft for a bigger overlap in the cases for improved reliability at high operating temperatures.
NEW clutch plates from nitrated steel for reduced wear on the steel clutch basket.
NEW stronger lithium-ion battery provides more reliable starting while still being extremely lightweight.
NEW MIM (Metal Inject Molded) shift star provides a stronger surface for improved reliability.
Handlebar map switch that also activates traction control and launch control for enhanced traction for the start, middle and end of the race
Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness.
A lightweight chromoly steel frame provides high torsional rigidity with less longitudinal stiffness resulting in excellent handling and energy absorption
KTM’s “No Dirt” footpeg design keeps the pegs pivot from becoming clogged, ensuring the footpeg is always in the correct position.
Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires.
Airbox and filter design provides maximum performance with fast “no tools” air filter changes.
“No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition.

SPECIFICATIONS

Engine Type: Single Cylinder, 4-Stroke
Displacement: 449.9cc
Bore/Stroke: 95.0/63.4 mm
Compression Ratio: 12.7.5:1
Starter/Battery: Electric Starter / 12V, 2.2 Ah
Transmission: 5 Gears
Fuel System: Keihin EFI, 44mm Throttle Body
Lubrication: Pressure lubrication with 2 oil pumps
Primary Ratio: 31:76
Final Drive: 13:48
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DDS-Clutch, Brembo Hydraulics
Ignition: Keihin EMS
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: Neken, Aluminum Ø 28/22mm
Front Suspension: WP Suspension AER 48 USD Ø 48mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21 / 2.15 x 19 Excel
Front/Rear Tires: 80/100-21” / 120/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 370mm / 14.6 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx: 7 L / 1.85 gal
Weight (without fuel), Approx: 100.6 kg/ 221.8 lbs

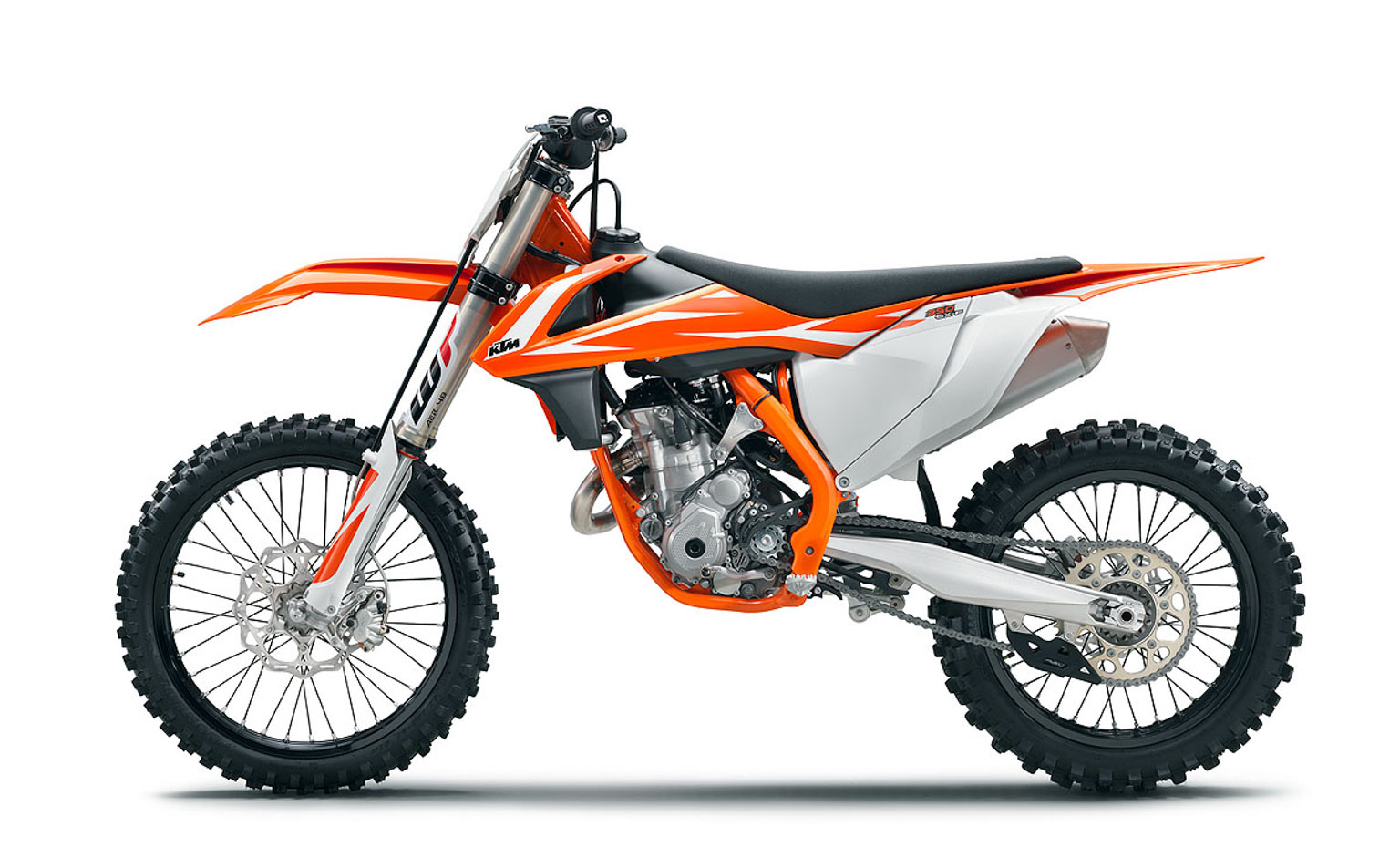

172341_KTM-350-SX-F-90-degree-left-MY-2018-studioweb

2018 KTM 350 SX-F

Already proven to be a strong performer, the KTM 350 SX-F gets even better for 2018 with a host of updates that further refine a racer that has no equal. The concept is simple: 450 cc power levels with the agility of a 250-class racer. While the concept is may seem easy; the execution is where it matters and the 2018 KTM 350 SX-F achieves a power to weigh ratio that stuns the competition. A compact engine cranks out unbelievable amounts of power while traction control, launch control and selectable maps make all that power useable. Updated suspension damping settings and refinements to the clutch, transmission and battery take the KTM 350 SX-F to a level that other 450-class machines have trouble matching.

2018 350 SX-F Highlights

UPDATED WP AER 48 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level. A new setting improves damping.
UPDATED rear suspension damping settings are perfectly matched to the WP AER 48 front fork
NEW radiator guards provide better airflow in muddy conditions.
NEW C4 bearing fitted to the transmission shaft for a bigger overlap in the cases for improved reliability at high operating temperatures.
NEW clutch plates from nitrated steel for reduced wear on the steel clutch basket.
NEW stronger lithium-ion battery provides more reliable starting while still being extremely lightweight.
Handlebar map switch that also activates traction control and launch control for enhanced traction for the start, middle and end of the race
Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness
A lightweight chromoly steel frame provides high torsional rigidity with less longitudinal stiffness resulting in excellent handling and energy absorption
KTM’s “No Dirt” footpeg design keeps the pegs pivot from becoming clogged, ensuring the footpeg is always in the correct position.
Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires
Airbox and filter design provides maximum performance with fast “no tools” air filter changes
“No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition

350SX-F SPECIFICATIONS
Engine Type: Single Cylinder, 4-Stroke
Displacement: 349.7cc
Bore / Stroke: 88.0 / 57.5 mm
Compression Ratio: 14.0:1
Starter/Battery: Electric Starter / 12V, 2.2 Ah
Transmission: 5 Gears
Fuel System: Keihin EFI, 44mm Throttle Body
Lubrication: Pressure lubrication with 2 oil pumps
Primary Ratio: 24:73
Final Drive: 14:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc CSS-Clutch, Brembo Hydraulics
Ignition: Keihin EMS
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: Neken, Aluminum Ø 28/22mm
Front Suspension: WP Suspension AER 48 USD Ø 48mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21 / 2.15 x 19 Excel
Front/Rear Tires: 80/100-21” / 110/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 370mm / 14.6 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx: 7 L / 1.85 gal
Weight (without fuel), Approx: 99.6kg / 219.6 lbs

2018 KTM 250SX-F

172333_KTM-250-SX-F-90-degree-MY-2018-studioweb

A combination of a powerful and torquey engine in a lightweight and agile chassis is bound to place the 250 SX-F onto podium after podium. Already known for its strong performance, the latest generation 250 SX-F gets even better for 2018. Updated WP AER 48 Air-sprung forks get new damping settings for even better handling while the WP rear shock also gets a revision to the damping settings. Additional updates to the clutch and transmission increase the 250 SX-F’s reliability. KTM’s revolutionary traction control guarantees efficient application of the rear tire with better control, especially on wet and slippery tracks, while launch control and map switch ensure you are always at the front. It is clear – there is no equal for the KTM 250 SX-F.

2018 250 SX-F Highlights

UPDATED WP AER 48 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level. A new setting improves damping.
UPDATED rear suspension damping settings are perfectly matched to the WP AER 48 front fork
NEW radiator guards provide better airflow in muddy conditions.
NEW C4 bearing fitted to the transmission shaft for a bigger overlap in the cases for improved reliability at high operating temperatures.
NEW clutch plates from nitrated steel for reduced wear on the steel clutch basket.
NEW stronger lithium-ion battery provides more reliable starting while still being extremely lightweight.
Handlebar map switch that also activates traction control and launch control for enhanced traction for the start, middle and end of the race
Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness
A lightweight chromoly steel frame provides high torsional rigidity with less longitudinal stiffness resulting in excellent handling and energy absorption
KTM’s “No Dirt” footpeg design keeps the pegs pivot from becoming clogged, ensuring the footpeg is always in the correct position.
Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires
Airbox and filter design provides maximum performance with fast “no tools” air filter changes
“No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition

250SX-F SPECIFICATIONS

Engine Type: Single Cylinder, 4-Stroke
Displacement: 249.9 cc
Bore/Stroke: 78.0/52.3 mm
Compression Ratio: 14.4:1
Starter/Battery: Electric Starter / 12V, 2.2 Ah
Transmission: 5 Gears
Fuel System: Keihin EFI, 44mm Throttle Body
Lubrication: Pressure lubrication with 2 oil pumps
Primary Ratio: 24:73
Final Drive: 14:51
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc CSS-Clutch, Brembo Hydraulics
Ignition: Keihin EMS
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: Neken, Aluminum Ø 28/22mm
Front Suspension: WP Suspension AER 48 USD Ø 48mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21 / 2.15 x 19 Excel
Front/Rear Tires: 80/100-21” / 100/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 370mm / 14.6 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx: 7 L / 1.85 gal
Weight (without fuel), Approx: 98.2 kg / 216.5 lbs

2018 KTM 250SX

172330_KTM-250-SX-90-degree-MY-2018-studioweb

The new 250 SX features a highly developed two-stroke engine fitted in a state-of-the-art chassis. Designed with the entire know-how of the KTM R&D and motorsport department the latest generation SX with its class-leading performance is faster with less vibration than any 250cc two-stroke before. The unrivalled performance of the lightweight 2-stroke engine makes it a true contender against the more complex 4-strokes. Its chassis features a chromoly steel frame with high torsional rigidity with less longitudinal stiffness for excellent handling and bump absorption. Matched with updated WP AER 48 air-sprung forks and rear shock, new radiator guards and revised carburetor, the 2018 KTM 250 SX is the most READY TO RACE 2-stroke ever created. This masterpiece of KTM’s R&D and motorsport departments is born to lead the next pack of winners that prefer premix.

2018 250 SX Highlights

UPDATED WP AER 48 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level. A new setting improves damping.
UPDATED rear suspension damping settings are perfectly matched to the WP AER 48 front fork
UPDATED 38mm Mikuni TMX carburetor settings for smoother and more controllable power delivery. The carburetor body has also been turned 7° to reduce fuel overflow.
NEW CDI control unit for improved starting. Ignition curves remain unchanged.
NEW radiator guards provide better airflow in muddy conditions.
The 249 cc engine features a compact shaft arrangement for better mass centralization.
Cylinder with twin-valve controlled power valve for smooth power that can be adjusted within seconds for different track conditions.
Lateral counter balancer reduces engine vibrations for less rider fatigue at the end of the moto.
Hydraulically operated DDS clutch features a damping system for better traction and durability.
Lightweight Chromoly steel frame provides high torsional rigidity with less longitudinal stiffness resulting in excellent handling and energy absorption.
Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness.
KTM’s “No Dirt” footpeg design keeps the pegs pivot from becoming clogged, ensuring the footpeg is always in the correct position.
Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires.
Airbox and filter design provides maximum performance with fast “no tools” air filter changes.
“No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition.

SPECIFICATIONS

Engine Type: Single Cylinder, 2-Stroke
Displacement: 249 cc
Bore/Stroke: 66.4/72.0 mm
Starter: Kickstarter
Transmission: 5 Gears
Fuel System: Mikuni TMX 38 Carburetor
Lubrication: Premix 60:1
Primary Ratio: 26:73
Final Drive: 14:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DDS-Clutch, Brembo Hydraulics
Ignition: Kokusan
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: Neken, Aluminum Ø 28/22mm
Front Suspension: WP Suspension AER 48 USD Ø 48mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60 x 21” / 2.15 x 19” Excel
Front/Rear Tires: 80/100-21” / 110/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 375mm / 14.8 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx: 7 L / 1.85 gal
Weight (without fuel), Approx: 95.4 kg/ 210.3 lbs

2018 KTM 150SX

172320_KTM-150-SX-90-degree-MY-2018-studioweb

With all the agility of a 125 but with a power and torque increase to take the fight to the 250cc 4-strokes, the 2018 KTM 150 SX sets the benchmark in terms of power and torque. A state-of-the-art chassis is already miles ahead of the competition and with updated suspension settings, new aluminum head stays and a reworked transmission, it pulls even further into the lead. With such an unbeatable and fast package, the 150 SX the most READY TO RACE competitor on the track.

2018 150 SX Highlights

UPDATED WP AER 48 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level. A new setting improves damping.
UPDATED rear suspension damping settings are perfectly matched to the WP AER 48 front fork
UPDATED 38mm Mikuni TMX carburetor settings for smoother and more controllable power delivery. The carburetor body has also been turned 7° to reduce fuel overflow.
NEW 3rd, 4th and 5th gear for improved reliability.
NEW CDI control unit for improved starting. Ignition curves remain unchanged.
NEW radiator guards provide better airflow in muddy conditions.
NEW Aluminum head stays are lighter and stronger.
Throttle assembly with easy free play adjustment similar to the 4-strokes featuring exchangeable throttle cams for different opening characteristics of the throttle
Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness
A lightweight Chromoly steel frame provides high torsional rigidity with less longitudinal stiffness resulting in excellent handling and energy absorption
KTM’s “No Dirt” footpeg design keeps the pegs pivot from becoming clogged, ensuring the footpeg is always in the correct position.
ODI grips that feature a lock-on design for the left grip and a vulcanized grip on the throttle side
Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires
Airbox and filter design provides maximum performance with fast “no tools” air filter changes
The 125 SX engine is compact and light while producing an impressive power output for class dominance
“No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition

150SX SPECIFICATIONS
Engine Type: Single Cylinder, 2-Stroke
Displacement: 143.99 cc
Bore/Stroke: 58/54.8 mm
Starter: Kickstarter
Transmission: 6 Gears
Fuel System: Mikuni TMX 38
Lubrication: Premix 40:1
Primary Ratio: 23:73
Final Drive: 13:48
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc Clutch, Brembo Hydraulics
Ignition: Kokusan
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: Neken, Aluminum Ø 28/22mm
Front Suspension: WP Suspension AER 48 USD Ø 48mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21 / 2.15 x 19 Excel
Front/Rear Tires: 80/100-21” / 100/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 375mm / 14.8 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx: 7 L / 1.85 gal
Weight (without fuel), Approx: 87.2 kg / 192.2 lbs

2018 KTM 125SX

172310_KTM-125-SX-90-degree-MY-2018-studioweb

The engine of the 125 SX has been known to be the most powerful and most competitive engine of its class and it is clear two-strokes are going to have a successful future at KTM thanks to outstanding power-to-weight ratio, a low operating cost and simplicity. The 2018 KTM 125 SX produces better power all over the rev range while being more compact and significantly lighter than all others. Improvements such as aluminum head stays, redesigned radiator guards and new suspension damping settings further elevate the READY TO RACE game of the 125 SX.

2018 125 SX Highlights

UPDATED WP AER 48 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level. A new setting improves damping.
UPDATED rear suspension damping settings are perfectly matched to the WP AER 48 front fork
UPDATED 38mm Mikuni TMX carburetor settings for smoother and more controllable power delivery. The carburetor body has also been turned 7° to reduce fuel overflow.
NEW 3rd, 4th and 5th gear for improved reliability.
NEW CDI control unit for improved starting. Ignition curves remain unchanged.
NEW radiator guards provide better airflow in muddy conditions.
NEW Aluminum head stays are lighter and stronger.
Throttle assembly with easy free play adjustment similar to the 4-strokes featuring exchangeable throttle cams for different opening characteristics of the throttle
Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness
A lightweight Chromoly steel frame provides high torsional rigidity with less longitudinal stiffness resulting in excellent handling and energy absorption
KTM’s “No Dirt” footpeg design keeps the pegs pivot from becoming clogged, ensuring the footpeg is always in the correct position.
ODI grips that feature a lock-on design for the left grip and a vulcanized grip on the throttle side
Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop GEOMAX MX3S tires
Airbox and filter design provides maximum performance with fast “no tools” air filter changes
The 125 SX engine is compact and light while producing an impressive power output for class dominance
“No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition
125SX SPECIFICATIONS
Engine Type: Single Cylinder, 2-Stroke
Displacement: 124.8 cc
Bore / Stroke: 54.0 / 54.5 mm
Starter: Kickstarter
Transmission: 6 Gears
Fuel System: Mikuni TMX 38
Lubrication: Premix 40:1
Primary Ratio: 23:73
Final Drive: 13:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc Clutch, Brembo Hydraulics
Ignition: Kokusan
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: Neken, Aluminum Ø 28/22mm
Front Suspension: WP Suspension AER 48 USD Ø 48mm
Rear Suspension: WP Monoshock 5018 BAVP DCC with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21 / 2.15 x 19 Excel
Front/Rear Tires: 80/100-21” / 100/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 375mm / 14.8 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx: 7 L / 1.85 ga
Weight (without fuel), Approx: 87.2 kg / 192.2 lbs

173570_KTM-85-SX-90-degree-right-MY-2018-studioweb

2018 KTM 85 SX

The riders of the junior class are not beginners. These are future champions fighting for victory, no matter if it is the AMA Amateur National Title or Junior Motocross World Championship. The 2018 KTM 85 SX is a completely new weapon for class supremacy. An all-new model from the ground up, the 85 SX boasts an engine with more power and ridability across the entire rev range and a chassis that allows the rider to use every bit of that power. There is no 85cc machine that is more READY TO RACE than the 2018 KTM 85 SX.

2018 KTM 85 SX Highlights
NEW engine with improved power and torque over the entire rev range is 1.5 pounds lighter.
NEW cylinder is designed around an all new power valve system that is adjustable and increases torque and controllability.
NEW crankshaft is lighter than before while having more inertia for better torque. Optimized balancing reduces vibrations.
NEW DS (Diaphram Spring) clutch is more compact with better performance than a conventional coil spring design.
NEW crankcases are more compact with a shaft arrangement that is close as possible to the center of gravity.
NEW lighter transmission with the same motocross-specific gear ratios.
NEW chomoly steel frame is nearly a pound lighter with 7% more torsional rigidity and 25% less longitudinal stiffness for more agility and better bump absorption.
NEW WP AER 43 front fork with a sophisticated air spring design and separate damping for easy adjustment to any track condition, rider weight or skill level.
NEW WP PDS (Progressive Damping System) rear shock provides excellent bump absorption and stability.
NEW aluminum subframe is lighter and more compact for better mass centralization.
NEW cooling system features integrated crankcase cooling and two radiators for high performance. The newly designed system uses the shroud and grill to protect the radiator in a crash.
NEW sharp bodywork that is based of the full-sized SX models with the same contact points and overall feel for perfect ergonomics.
NEW airbox similar to the larger SX models allows for air filter changes in seconds without tools.
Black coated high-end Excel rims, lightweight, CNC machined hubs and black spokes with lightweight aluminum nipples ensure the highest stability at minimum weight on the KTM 85 SX.
2017 85 SX SPECIFICATIONS
Engine Type: Single Cylinder, 2-Stroke
Displacement: 84.9 cc
Bore / Stroke: 47 / 48.95 mm
Starter: Kickstarter
Transmission: 6 Gears
Fuel System: Keihin PWK 28
Lubrication: Premix 40:1
Primary Ratio: 20:64
Final Drive: 13:46
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DS Clutch, Formula Hydraulics
Ignition: Kokusan
Frame: Central Tube Frame, Chrome Molybdenum
Subframe: Aluminum
Handlebar: Tapered Aluminum Ø 28/22mm
Front Suspension: WP USD AER 43 Ø 43 mm
Rear Suspension: WP PDS Monoshock
Suspension Travel Front/Rear: 280 mm / 11 in; 305 mm / 12 in
Front/Rear Brakes: Disc Brake 240 mm / 210 mm
Front/Rear Rims: 1.40 x 17” / 1.60 x 14”
Front/Rear Tires: 70/100-17” / 90/100-14” MAXXIS
Chain: 1/2 x 5/16 in
Silencer: Aluminum
Steering Head Angle: 24º
Triple Clamp Offset: 14 mm
Wheelbase: 1,290 mm ± 10 mm / 50.8 in ± 0.4 in
Ground Clearance: 352 mm / 13.9 in
Seat Height: 855 mm / 33.7 in
Tank Capacity, Approx: 5.2 L / 1.4 gal
Weight (without fuel), Approx: 67 kg / 147.7 lbs

173569_KTM-65-SX-90-degree-right-MY-2018-studioweb

2017 KTM 65 SX

The 65 SX is a fully-fledged piece of racing kit for young pilots. This year’s top mini features revolutionary WP AER 35 front forks, cool graphics and detailed improvements that set the standard in terms of power, riding dynamics, equipment and craftsmanship. Further weight reduction from the new WP AER 35 fork make the 65 SX even sharper on the track. Like its larger counterparts, the 65 SX is truly READY TO RACE for its young competitors.

2018 KTM 65 SX Highlights:
NEW WP AER 35 air-sprung front fork is 1.7 pounds lighter and makes adjustments for the rider size and track easy
Sleek bodywork that provides excellent ergonomics for the ultimate in control
NEW graphics to match the full-size SX models
The 65 SX benefits from cutting-edge 2-stroke technology and an easy to shift 6-speed transmission with a hydraulic clutch.
A WP PDS monoshock guarantees optimum damping characteristics and outstanding stability. The rear wheel travel is 270mm.
With adjustable compression and rebound, the suspension can be set up precisely for the rider and track in no time.
The 65 SX is fitted front and rear with massive four-piston calipers that grip lightweight Wave brake discs of 198mm front and 160mm rear diameter.
Like the big KTM factory racers, the 65 SX has super lightweight, black anodized, aluminum rims providing the highest strength.
MAXXIS knobby tires provide superb grip in any terrain.

2018 KTM 65 SX SPECIFICATIONS
Engine Type: Single Cylinder, 2-Stroke
Displacement: 64.9 cc
Bore / Stroke: 45.0 / 40.8 mm
Starter: Kickstarter
Transmission: 6 Gears
Fuel System: Mikuni TM 24-505
Lubrication: Premix 60:1
Primary Ratio: 23:75
Final Drive: 14:48
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc Clutch, Formula Hydraulics
Ignition: AET Digital
Frame: Central Tube Frame, Chrome Molybdenum
Subframe: Aluminum
Handlebar: Renthal, Aluminum Ø 22mm
Front Suspension: WP AER 35 USD Ø 35mm
Rear Suspension: WP Monoshock
Suspension Travel Front/Rear: 217 mm / 8.5 in; 270 mm / 10.6 in
Front/Rear Brakes: Disc Brake 198 mm / 220 mm
Front/Rear Rims: 1.60 x 14” / 1.60 x 12”
Front/Rear Tires: 60/100-14” / 80/100-12”
Chain: 1/2 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 25.5º
Triple Clamp Offset: 22 mm
Wheelbase: 1,137 mm ± 10 mm / 44.8 in ± 0.4 in
Ground Clearance: 280 mm / 11 in
Seat Height: 750 mm / 29.5 in
Tank Capacity, Approx: 3.5 L / 0.92 gal
Weight (without fuel), Approx: 52.2 kg / 115.1 lbs

2018 KTM 50 SX

173567_KTM-50-SX-90-degree-MY-2018-studioweb

The 50 SX is a true READY TO RACE KTM for young MX riders. It is a genuine dirt bike that, like its bigger siblings, is produced with top-quality components. This makes the 50 SX the first choice as a stepping stone into the world of MX or for the first racing step on the ladder. With the youngster in mind this package has an engine that delivers steady, controllable power, incorporating an automatic clutch that allows the rider to concentrate on the track, not shifting. This year’s model features revolutionary WP AER 35 front forks, fully adjustable rear suspension, a new exhaust, ultra-cool graphics and detail improvements that make going fast fun.

2018 KTM 50 SX Highlights:
WP AER 35 air-sprung fork is easily adjustable for different rider sizes as well as track conditions
Fully adjustable rear suspension to match the performance of the WP AER 35 fork
A 3-shaft engine design keeps the crankshaft close to the bike’s center of gravity for quick handling along with room for an optimized reed valve angle for maximum performance
Bodywork that mimics the full-size 2017 SX-F line that gives the 50 SX a slim profile for excellent ergonomics and handling
Front and rear hydraulic brakes by Formula combined with lightweight WAVE discs are powerful with feedback that gives control for any skill level
A centrifugal multi-disc automatic clutch provides manageable acceleration and can be adjusted to the track conditions in minutes without tools
Super lightweight, black anodized aluminum rims are matched to MAXXIS tires for maximum grip
2018 50 SX SPECIFICATIONS

Engine Type: Single Cylinder, 2-Stroke
Displacement: 49 cc
Bore/Stroke: 39.5/40.0 mm
Starter: Kickstarter
Transmission: Rigid 1-Stage Reduction Gear
Fuel System: Dell’Orto PHBG 19 BS
Lubrication: Premix 60:1
Primary Ratio: 33:61 Straight Cut Reduction Gear
Final Drive: 11:40
Cooling: Liquid Cooling
Clutch: Centrifugal Clutch (Adjustable)
Ignition: Selettra 2p D36
Frame: Central Tube Frame, Chrome Molybdenum
Subframe: Steel
Handlebar: Renthal, Aluminum Ø 22mm
Front Suspension: WP AER 35 USD Ø 35mm
Rear Suspension: WP Monoshock
Suspension Travel Front/Rear: 205 mm / 8.07 in; 185 mm / 7.28 in
Front/Rear Brakes: Disc Brake 160 mm / 160 mm
Front/Rear Rims: 1.50 x 12” / 1.60 x 10”
Front/Rear Tires: 60/100 x 12” / 2.75 x 10”
Chain: 1/2 x 3/16 in
Silencer: Aluminum
Steering Head Angle: 24.0º
Triple Clamp Offset: 22 mm
Wheelbase: 1,032mm ± 10 mm / 40.6 ± 0.4 in
Ground Clearance: 252mm / 9.92 in
Seat Height: 684 mm / 26.9 in
Tank Capacity, Approx: 2.3L / 0.61 gal
Weight (without fuel), Approx: 44.8 kg/ 90 lbs

2018 KTM 50SX MINI

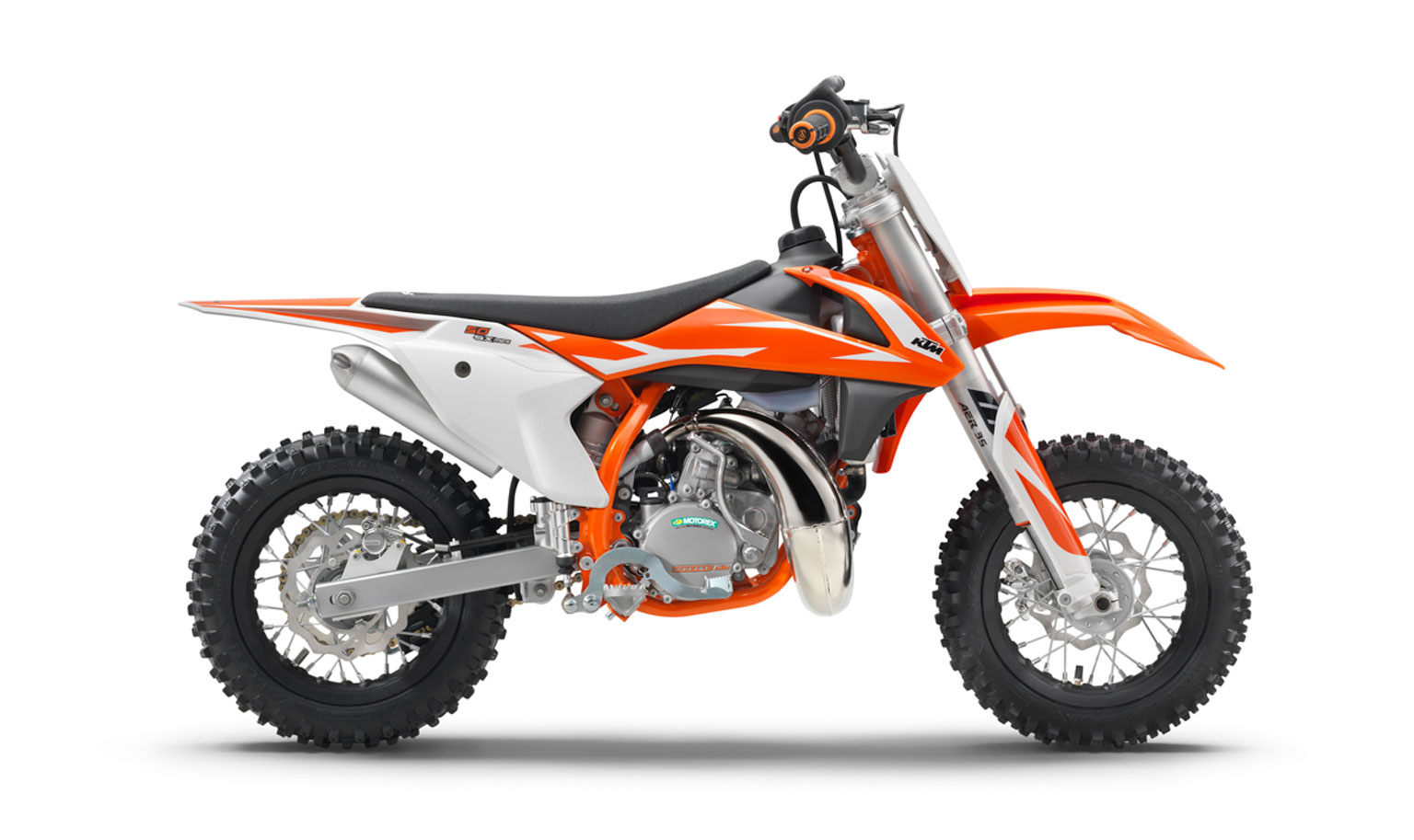

173568_KTM-50-SX-Mini-90-degree-right-MY-2018-studio

Built for the smallest of racers, the 50 SX Mini incorporates much of the technology of the 50 SX with a more friendly power delivery, smaller wheels and a lower seat height. It is a genuine dirt bike that, like its bigger siblings, is produced with top-quality components. This makes the 50 SX Mini the best choice for a young rider’s first KTM. The 2-stroke engine delivers steady, controllable power, incorporating an automatic clutch that allows the rider to concentrate on the terrain, not shifting. Just like the entire READY TO RACE KTM product line, the 50 SX Mini has slim bodywork for the best possible ergonomics, looking just like the biggest and baddest 450 SX-F.

2018 KTM 50 SX Mini Highlights:
A 3-shaft engine design keeps the crankshaft close to the bike’s center of gravity for quick handling along with room for an optimized reed valve angle for maximum performance
Bodywork that mimics the full-size 2017 SX-F line that gives the 50 SX mini a slim profile for excellent ergonomics and handling
Front and rear hydraulic brakes by Formula combined with lightweight WAVE discs are powerful with feedback that gives control for any skill level
A centrifugal multi-disc automatic clutch provides manageable acceleration and can be adjusted to the track conditions in minutes without tools
Super lightweight, black anodized aluminum rims are matched to MAXXIS tires for maximum grip

2018 50 SX Mini SPECIFICATIONS

Engine Type: Single Cylinder, 2-Stroke
Displacement: 49 cc
Bore/Stroke: 39.5/40.0 mm
Starter: Kickstarter
Transmission: Rigid 1-Stage Reduction Gear
Fuel System: Dell’Orto PVHA 12 XS
Lubrication: Premix 60:1
Primary Ratio: 33:61 Straight Cut Reduction Gear
Final Drive: 10:42
Cooling: Liquid Cooling
Clutch: Centrifugal Clutch (Adjustable)
Ignition: Selettra 2p D36
Frame: Central Tube Frame, Chrome Molybdenum
Subframe: Steel
Handlebar: Renthal, Aluminum Ø 22mm
Front Suspension: WP USD Ø 35mm
Rear Suspension: WP Monoshock
Suspension Travel Front/Rear: 100 mm / 3.9 in; 147 mm / 5.6 in
Front/Rear Brakes: Disc Brake 160 mm / 160 mm
Front/Rear Rims: 1.60 x 10” / 1.60 x 10”
Front/Rear Tires: 2.50 x 10” / 2.75 x 10”
Chain: 1/2 x 3/16 in
Silencer: Aluminum
Steering Head Angle: 23.6º
Triple Clamp Offset: 22 mm
Wheelbase: 914 ± 10 mm / 36 ± 0.4 in
Ground Clearance: 184 mm / 7.2 in
Seat Height: 558 mm / 22 in
Tank Capacity, Approx: 2.1L / 0.55 gal
Weight (without fuel), Approx: 40 kg/ 88.2 lbs

Similar Articles

Leave a Reply

Top
